CrowdStrike Azure VM Mitigation

Posted Jul 19, 2024

By The Azure Guys

5 min read

Issue

Let’s be real here, this is not a Microsoft instigated outage. This is a Crowdstrike issue, that has impacted Virtual Machines running Windows Client and Windows Server, running the CrowdStrike Falcon agent on MANY platforms, including Azure, AWS, GCP and Dedicated environments.

Affected Vms/Servers encounter a bug check (BSOD) and get stuck in a restarting state/boot loop.

It’s approximated that the impact started around 19:00 UTC on the 18th of July.

Symptoms

VMs are stuck in a boot loop, which includes a BSOD.
Serial Console is not available.

Resolution

There are a number of scenarios that may apply given the VM type.

The faulty file may still be present after restore, but CS appears to have replaced it with a non-busted version:
Statement on Falcon Content Update for Windows Hosts
Channel file “C-00000291*.sys” with timestamp of 0527 UTC or later is the reverted (good) version.
Channel file “C-00000291*.sys” with timestamp of 0409 UTC is the problematic version.

Option 1 - Restore VM from backup

If the VM is used for relatively static workloads and has valid backups, its recommended that you restore from a backup from before 19:09 UTC on the 18th of July.

This option is not recommended for Domain Controllers or Database workloads.

Option 2 - Repair OS Disk

Method Works for Gen V1 and V2 VMs, but V2 VMs require additional steps noted below.

Pre-requisites for this method require:

Staging resources (VM/Disks) need to be created in the same Region and Availability Zone as the affected VM.
Staging VM created in affected VMs Region and Availability Zone, get customer approval as multiple VMs may be required.

Steps (Azure Portal) for Gen V1 VMs:

From the affected VM, go to Disks and take Incremental Snapshot (Not Image) of affected OS Disk.
Once the snapshot is created, create a new disk from that Snapshot, same region, RSG, AZ as affected VM OS disk.
Attach new disk to Staging VM.
Logon to Staging VM.

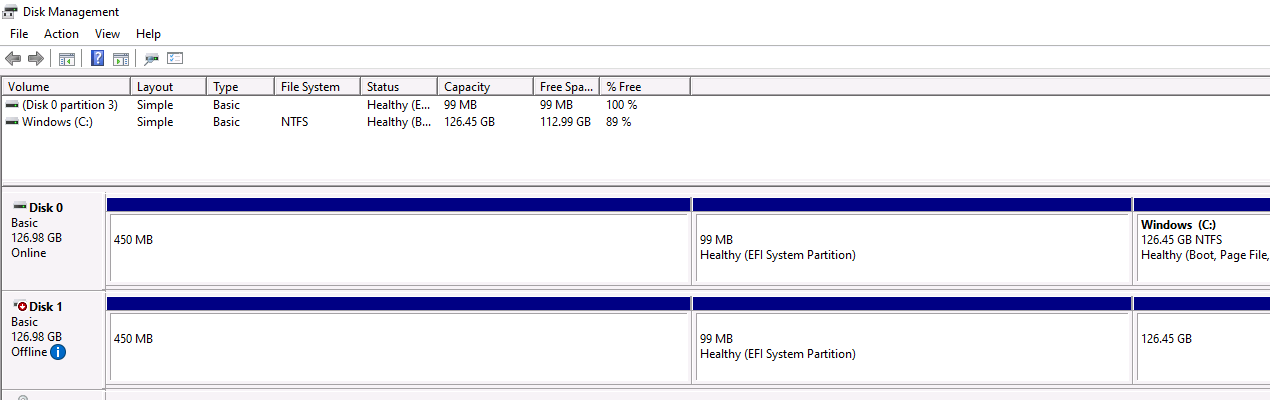

Use Disk Manager to “Online” the disk if its not online already.
Remove all C:/Windows/System/System32/Drivers/CrowdStrike/C00000291*.sys files.
Detach new disk from Staging VM.
Go to affected VM and SWAP OS Disk to new Disk. VM > Disks > Swap OS Disk.
Boot affected server.

Steps (Azure Portal) for Gen V2 VMs:

From the affected VM, go to Disks and take Incremental Snapshot (Not Image) of affected OS Disk.
Once the snapshot is created, create a new disk from that Snapshot, same region, RSG, AZ as affected VM OS disk.
Attach new disk to Staging VM.
Logon to Staging VM.
Use Disk Manager to “Online” the disk if its not online already.
Remove all C:/Windows/System/System32/Drivers/CrowdStrike/C00000291*.sys files.

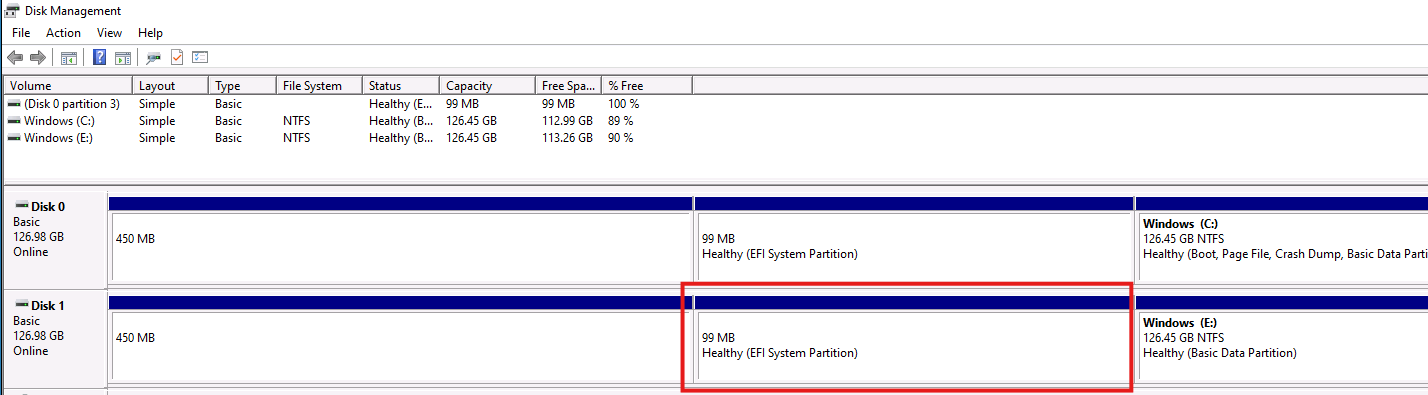

We need to assign a drive letter to the boot partition, this is the EFI partition, usually around 95-99mb.
Open Server Manager > File and Storage Services > Volumes > Disks.

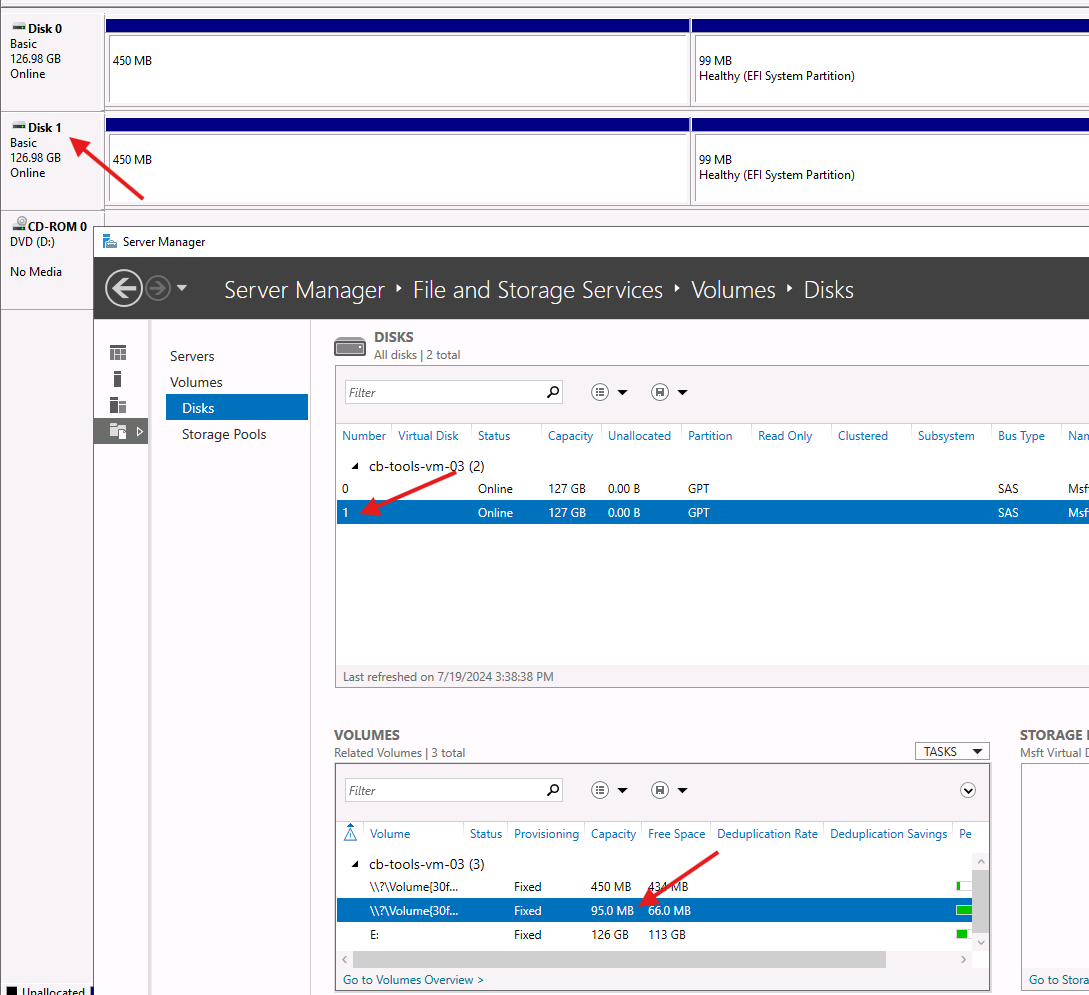

Check Disk Management for Disk Number, in this example - Disk 1.

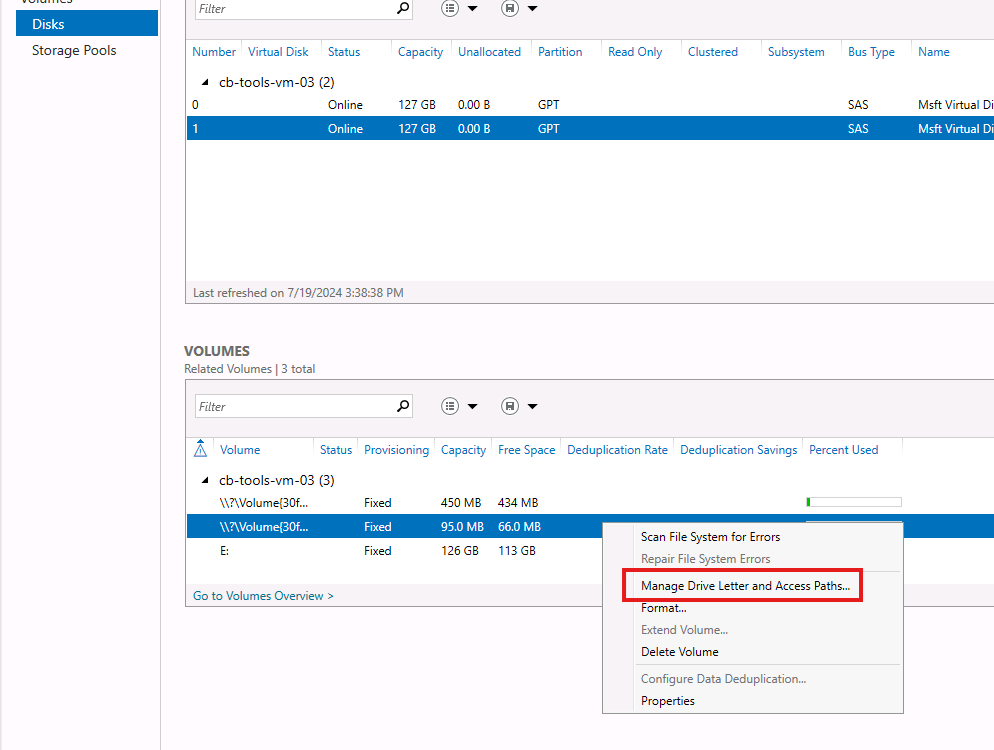

Set a drive letter with Server Manager, not Disk Management, by right-clicking on the volume > Manage Drive Letter….
It can be any available letter but in this example, I used “B:”, for boot.

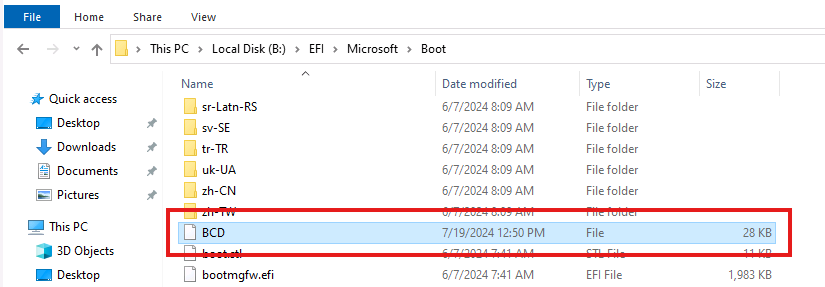

Open File Explorer and you can now see B: drive mounted. Or whatever drive letter you chose in the previous step.
Locate the BSD file and note the path. Typically, it should be: %drive letter%\EFI\Microsoft\Boot. Make a note of the path.

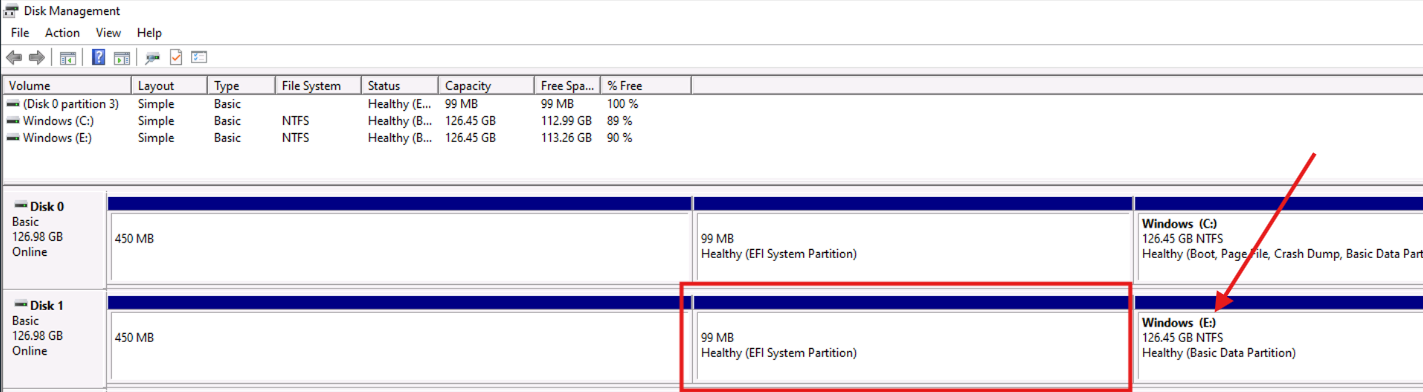

Make a note of the drive letter for the Windows Partition for the affected drive, in this example, E:. See the pic from step 7, where you see can that the Windows Partition is on E:. See the arrow below:
With the information from step 13, update the following command:
bcdedit /store %Drive and Path from step13% /enum /v
For this example: bcdedit /store B:\EFI\Microsoft\Boot\bcd /enum /v

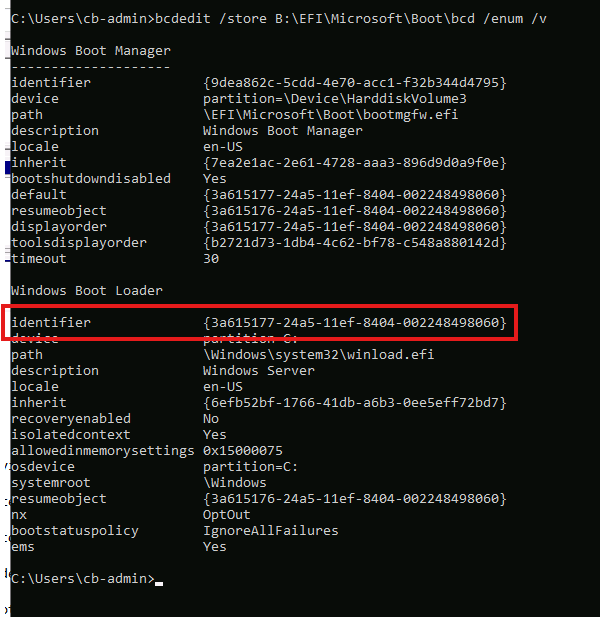

Open a command prompt and run the command.
Copy the Windows Boot Load Identifier from the output (This example: 3a615177-24a5-11ef-8404-002248498060)

Update the following scripts with the info:

Set all the paths to your bcd
In Line 1, Device Partition Drive letter matches letter from step 10/11.
In Line 5, Device letter matches letter from step 14.
In Line 11, Device letter matches letter from step 14.
Replace <IDENTIFIER> with your Identifier from step 17.


bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {bootmgr} device partition=B:

bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {bootmgr} integrityservices enable

bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {<IDENTIFIER>} device partition=E:

bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {<IDENTIFIER>} integrityservices enable

bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {<IDENTIFIER>} recoveryenabled Off

bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {<IDENTIFIER>} osdevice partition=E:

bcdedit /store B:\EFI\Microsoft\Boot\bcd /set {<IDENTIFIER>} bootstatuspolicy IgnoreAllFailures

Once the script is updated with the info, run the lines in turn via command prompt.
They should all complete successfully, if not, check your paths and drive letters.
Detach the now repaired disk from Staging VM.
Go to affected VM and SWAP OS Disk to new Disk. VM > Disks > Swap OS Disk.
Boot affected server.

Option 3 - Automatic Repair Option

You can follow this guide from MSFT on using their Repair tool.

Repair a Windows VM by using the Azure Virtual Machine repair commands

You can run it in the Cloud Shell via the Portal, or a local Azure CLI install on your workstation.

This will build out the Repair resources for you and manage the attaching/detaching of the disk.

There is also a cleanup process once complete.

But you will still need to run the Boot Loader repair via the Repair VM as per my steps above, for Gen V2 VMs. The repair process doesnt automate that.

Repair a Windows VM by using the Azure Virtual Machine repair commands

Troubleshoot Windows VM OS boot failure

Falcon Update Remediation and Guidance Hub

CrowdStrike’s Statement on the outage
